12-inch flour mill

Weight 100 kg

Capacity 15 to 20 Kg

Stone Diameter 12 Inch (300mm)

Stone Thickness 75 mm

Electric Motor 2 HP Single Phase or 2 HP Three Phase

RPM 1440 RPM

Voltage 220 V

Power Consumption 2 Unit

Shaft Diameter 35 mm

Bearing Size 6207 2RS

10-inch flour mill

Weight 60 kg

Capacity 10 to 15 Kg

Stone Diameter 10 Inch (250mm)

Stone Thickness 50 mm

Electric Motor 1.5 HP Single Phase RPM 1440 RPM

Voltage 220 V

Power Consumption 1.7 Unit

Shaft Diameter 25 mm

Bearing Size 6205 2RS

Double-bearing flour mill

third pedestal flour mill

16-inch flour mill

Weight 200 kg

Capacity 50 to 60 Kg

Stone Diameter 16 Inch (400mm)

Stone Thickness 75 mm

Electric Motor 5 HP / 7.5 HP Three Phase

RPM 1440 RPM

Voltage 440 V

Power Consumption 3.5 Unit

Shaft Diameter 40 mm

Bearing Size 6208 2RS

18-inch flour mill

Weight 350 kg

Capacity 70 to 80 Kg

Stone Diameter 18 Inch (450mm)

Stone Thickness 75 mm

Electric Motor 7.5 HP / 10 HP Three Phase

RPM 1440 RPM

Voltage 440 V

Power Consumption 7.5 Unit

Shaft Diameter 40 mm

Bearing Size 6208 2RS

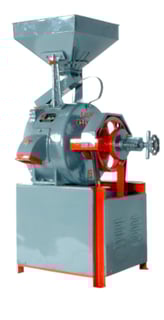

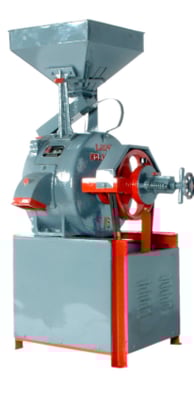

16 " & 18 " flour mill

available with box-type foundation & trolly

emery & natural stone type flour mill specifications

10", 12", 14"

12", 14"

SPECIFICATIONS
