Diamond stone flour mills

10" Flour mill

This is a domestic flour mill, the best item for home use. Easy to Operate, Maintain and Clean

Weight Approx 62 Kg

Capacity Approx 12 Kg to 15 Kg

Stone Size 10 Inch X 20 MM

electric Motor 1.5 Hp Single Phase

RPM 1440 RPM

Voltage 220 V

Shaft Diameter 25 MM

bearing Size 6205 ZZ

Certification CE & ISO

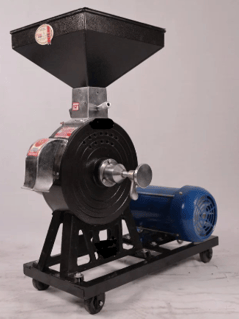

12" Flour Mill

This is a domestic flour mill's best item for home and small businesses. This is not an automatic flour mill

Weight Approx 105 Kg

Capacity Approx 15 Kg to 20 Kg

Stone Size 12 Inch X 27 MM

electric Motor 2 Hp Single Phase

RPM 1440 RPM

Voltage 220 V

Shaft Diameter 30 MM

bearing Size 6206 ZZ

Certification CE & ISO

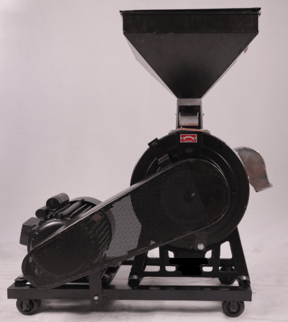

14" Flour Mill

14 Inch Diamond Stone Atta Chakki Machine Made with Innovative Stone Granding Technology

Weight Approx 120 Kg

Capacity Approx 23 Kg to 28 Kg

Stone Size 14 Inch X 27 MM

electric Motor 3 Hp Single Phase or Three phase

RPM 1440 RPM

Voltage 220 V / 440 V

Shaft Diameter 35 MM

bearing Size 6207 ZZ

Certification CE & ISO

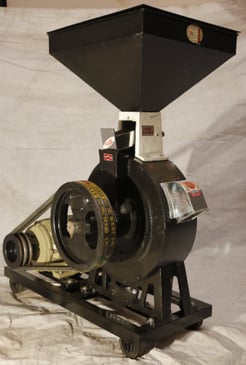

16" Flour Mill

This is a heavy-duty commercial flour mill. You can save on labor expenses and stone replacement cost

Weight Approx 205 Kg

Capacity Approx 60 Kg to 70 Kg

Stone Size 16 Inch X 32 MM

electric Motor 5 Hp / 7.5 Hp

RPM 1440 RPM

Voltage 440 V

Shaft Diameter 40 MM

bearing Size 6208 ZZ

Certification CE & ISO

18" Flour Mill

This is a heavy-duty commercial flour mill. You can save on labor expenses and stone replacement cost

Weight Approx 305 Kg

Capacity Approx 80 Kg to 120 Kg

Stone Size 18 Inch X 45 MM

electric Motor 7.5 Hp / 10 Hp

RPM 1440 RPM

Voltage 440 V

Shaft Diameter 40 MM

bearing Size 6208 ZZ / 6308 ZZ

Certification CE & ISO

• There is a special type of stone, which we call diamond cutting stone,

• it is a cutting tool in which millions of microscopic abrasive grains are bond together.

• The abrasive grains are held together in the porous structure of the grinding wheel by a bonding substance (bond).

• Apart from grains and bond, the porous construction of the wheel is an important part.

• Only diamond can cut this stone; it cannot be cut by iron.

• 10", 12", 14", 16" & 18” diamond cutting stones are manufacturing flour mill.

• You don't need to require stone maintained periodically.

• There is no possibility of pebbles coming in this flour mill.

• This flour mill stone does not harm health.

• Diamond cutter emery stone gives long life and very low maintenance.

• Labor cost and strong replacement cost will be saved.

• Our atta chakki machine can grind all the grains like wheat, millets, rice, jowar, gram (besan), ragi etc.

• You can grind different types of grains with the help of the nakshatra Flour Mill.

• Retains all nutrients of grain like carbohydrates, proteins, vitamis and fiber etc.

• No more hassles of taking grains and bringing back flour from local flour mill.

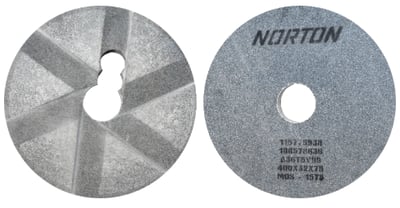

grinding stone ( diamond stone )

special designed grinding stones

10", 12", 14" flour mills

SPECIFICATIONS
